1V - 10V Dimmable LED Module Rectangle with Energy Efficient

Name: 1V 10V Dimmable LED Module Rectangle with Energy Efficient
Brand: RELIGHT
Price: 1 USD

China 1V - 10V Dimmable LED Module Rectangle with Energy Efficient wholesale

Brand Name : RELIGHT

Model Number : 280*50mm-5630white x 56pcs and 5630 Red LED x 16pcs

Place of Origin : CHINA

MOQ : 100pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : negotiation

Delivery Time : 10 working days after received your payment

Packaging Details : Customized packing design or packed in standard anti-static material

Product Name : 280*50mm-5630white x 56pcs and 5630 Red LED x 16pcs

Application : medical application lighting

CCT : 4000K

Efficiency(LM/W) : 110-130lm/W

Input : 23-26V/0.45A

Connector : Wago connector

Contact Now

1V - 10V Dimmable LED Module Rectangle with Energy Efficient

Quick Details:

Size:280*50mm

PCB:1.2mm Aluminum

Connector:Wago connector

LED:5630white x 56pcs and 5630 Red LED x 16pcs

CCT:4000K

CRI:95 or 98

COI:<3.2 (medical application)

Input:23-26V/0.45A

Efficiency:110-130lm/W

Application:Ceiling/Grille/Panel

Description:

Product Name:	280*50mm-5630white X 56pcs And 5630 Red LED X 16pcs	Application:	Medical Application Lighting
Size:	280*50mm	CRI:	>80
CCT:	4000K	Efficiency(LM/W):	110-130lm/W
Input:	23-26V/0.45A	Connector:	Wago Connector
LED Chip:	5630white X 56pcs And 5630 Red LED X 16pcs

Technical Date

Ø Operating module at 300mA

Order Code	-mA	VV	CCT -K	Flux -lm	CRI	Typ.Efficiency lm/W
RL-TOC88DA1008C-830	300	28-29.5	3000	1000	80	125
RL-TOC88DA1008C-840	300	28-29.5	4000	1050	80	135
RL-TOC88DA1008C-760	300	28-29.5	6000	1150	70	140

Ø Operating module at 350mA

RL-TOC88DA1008C-830	350	29.5-31	3000	1150	80	120
RL-TOC88DA1008C-840	350	29.5-31	4000	1250	80	130
RL-TOC88DA1008C-760	350	29.5-31	6000	1350	70	135

Ø Operating module at 450mA

RL-TOC88DA1008C-830	450	30-32	3000	1400	80	115
RL-TOC88DA1008C-840	450	30-32	4000	1550	80	125
RL-TOC88DA1008C-760	450	30-32	6000	1650	70	130

Advantage:

Customized design for the high CRI requirement projects, especially for CRI >98

For example: Hospital, Super market for fresh food

Product in details:

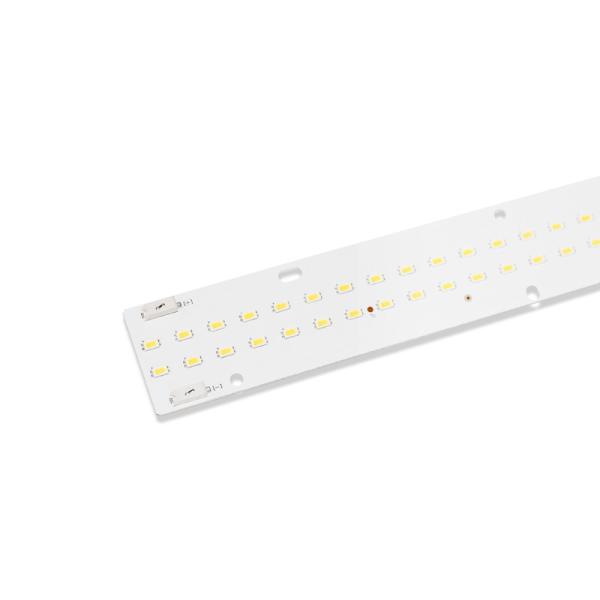

1V - 10V Dimmable LED Module Rectangle with Energy Efficient

Competitive Advantage:

Customized design
LED component analyze, engineering file service
Ultra samples preparation
After-sales service
CRI90 or CRI>95 design for USA market
